Spectrometers of the CREMAN NMR platform

CREAMAN NMR platform has High-resolution liquid-state and solide-state NMR spectrometers

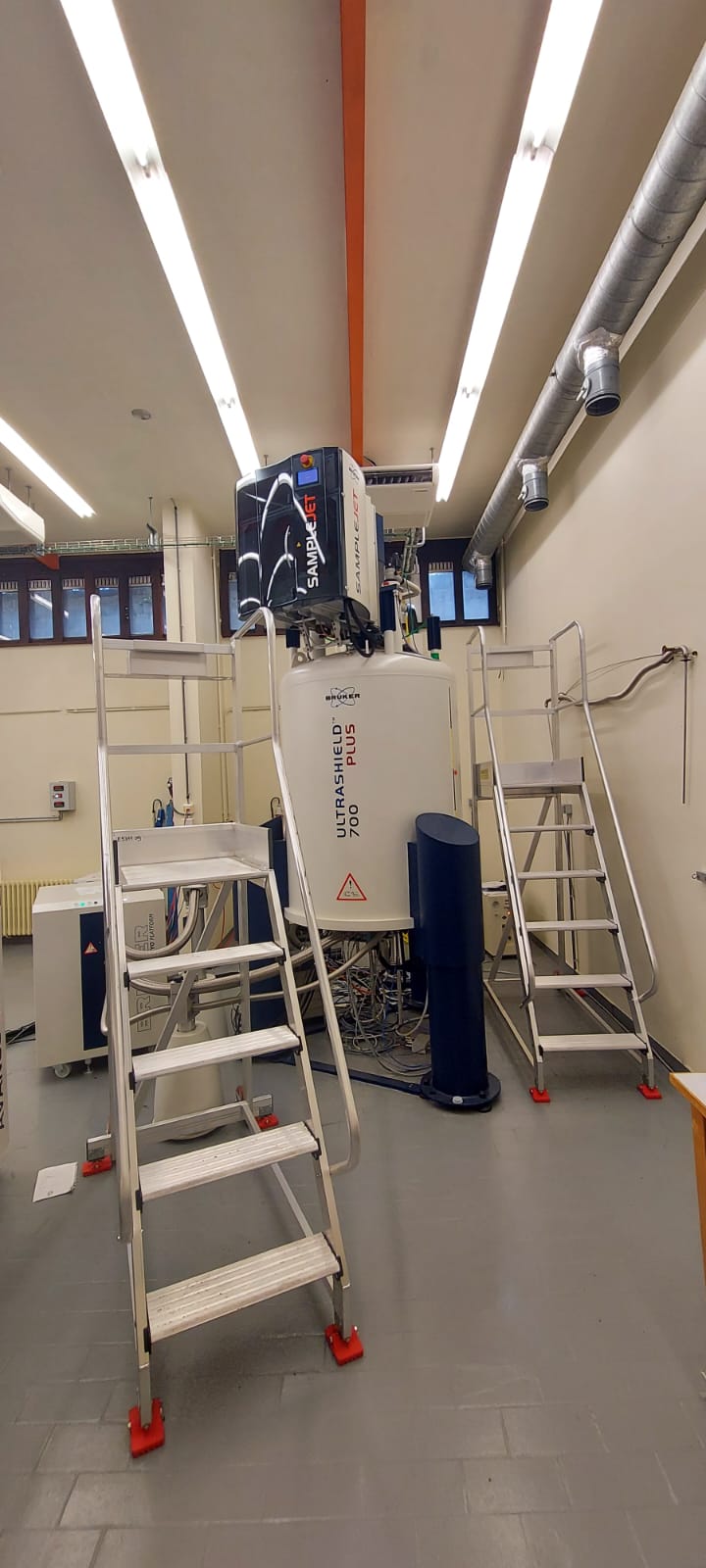

Advance III HD 700 MHz Bruker

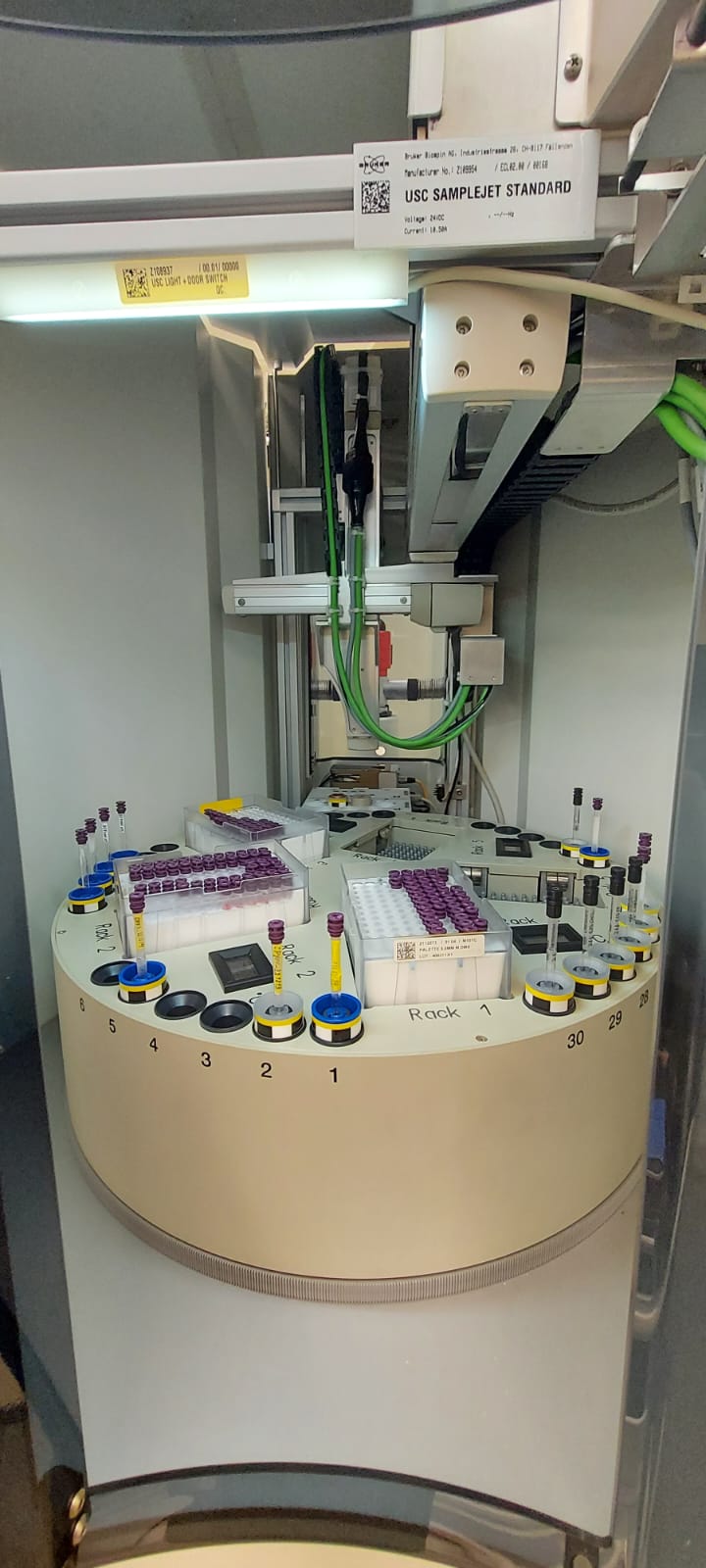

The Bruker Advance III-HD 700 MHz NMR spectrometer is equipped with a helium-cooled probe (cryoprobeTM) for liquid samples analysis. This probe, which offers high detection sensitivity allows the analysis of four nuclei: 1H, 13C, 19F, 15N. This spectrometer is equipped with an refrigerated automatic sample changer SampleJettm that can handle tubes of diameter 5, 3 and 1.7 mm.

Specifications

Magnet: UltraShieldTM 16.4 T
Console: Advance III HD
Probe: CryosondeTM inverse TCI 1H/19F-13C/15N
Channels: 1H, 2H, X (13C & 15N)
Samples changer: SampleJetTM with 5 refrigerated racks with 96 positions
home
home

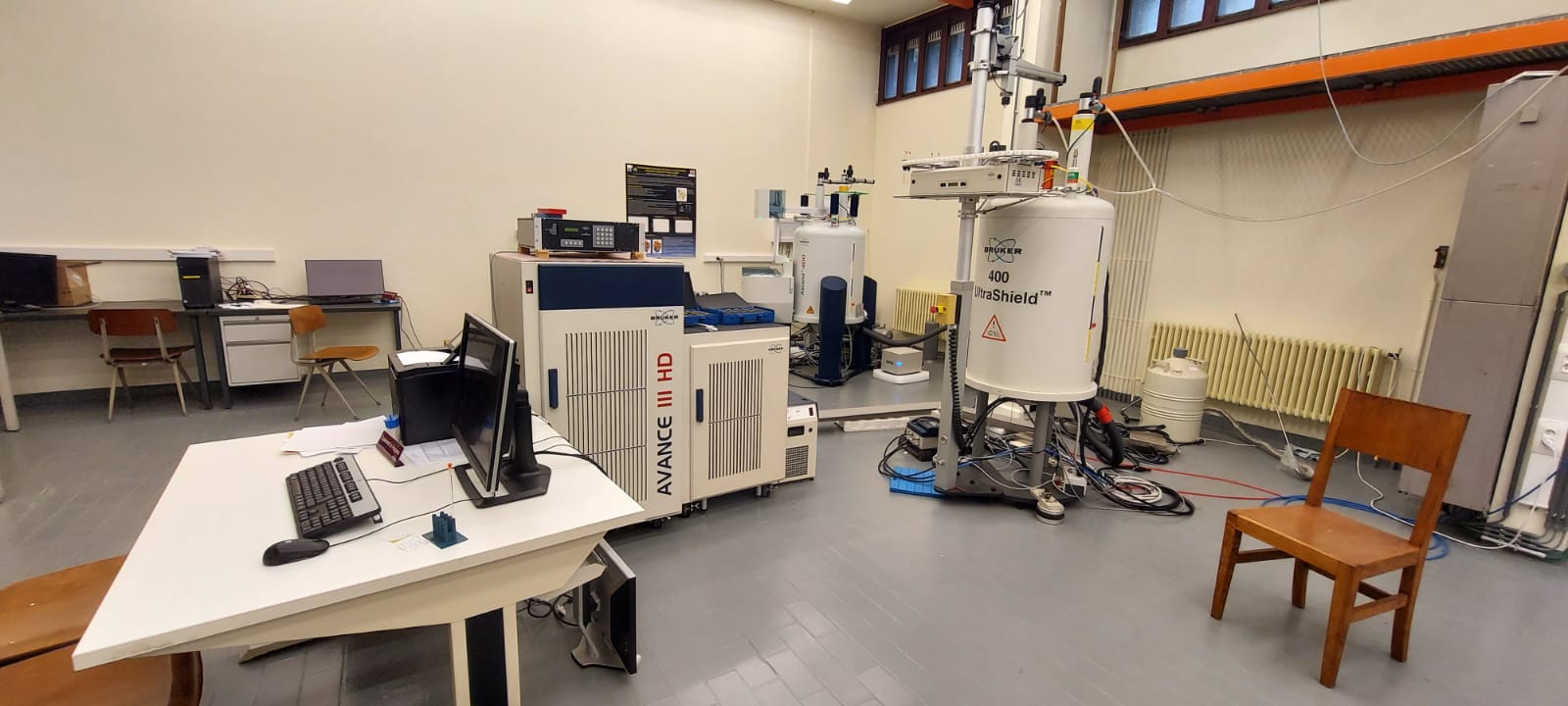

Advance III HD 500 MHz Bruker

home
home home

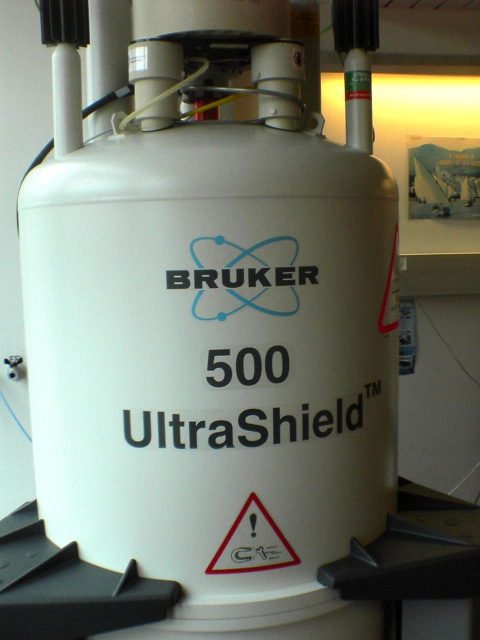

The Bruker Advance III HD 500 MHz NMR spectrometer is equipped with a helium-cooled probe (cryoprobeTM) for liquid samples analysis. This probe has a GLP certification and allows the the observation of nuclei whose resonance frequency is between 15N and 31P. This spectrometer is equipped with an automatic sample changer SampleJettm that can handle tubes of diameter 5 and 3 mm.

Specifications


Magnet: UltraShieldTM 11.7 T
Console: Advance III HD
Probe: CryosondeTM inverse BBF/H/D
Channels: 1H, 2H, BBX (31P - 15N)
Samples changer: SampleJetTM with 98 positions

Advance NEO 400 MHz Bruker

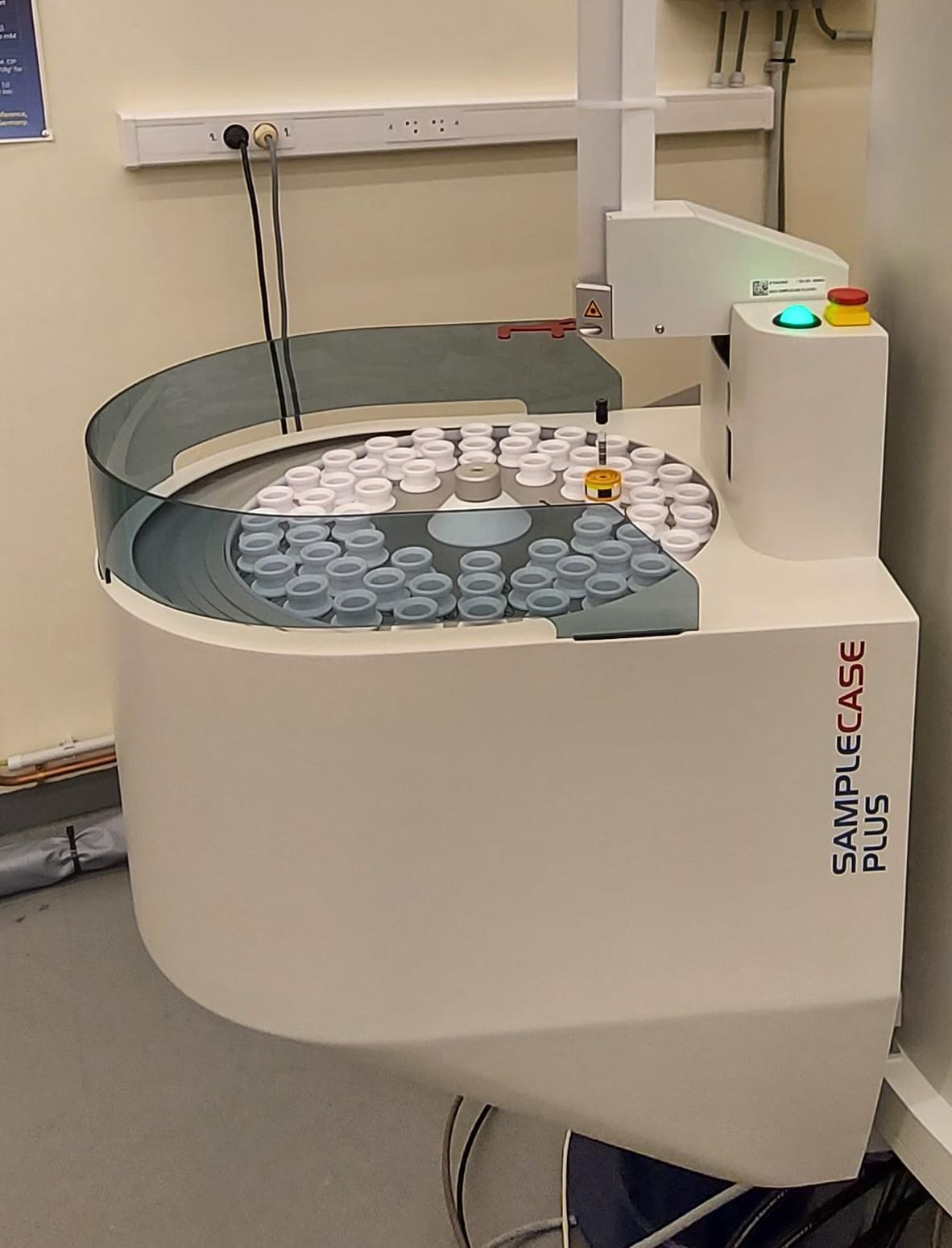

The Bruker Advance NEO 400 MHz NMR spectrometer is equipped with two iProbes: liquid and solid. Both are BBO type (Broad-band observed) and allow the observation of nuclei whose resonance frequency is between 15N and 31P. The 19F can also be observed by the 1H channel. Liquid and solid samples are handle with the same automatic samples changer SampleCaseTM.

Specifications


Magnet: AscendTM 9.4 T
Console: Advance NEO
Liquid iProbe: PI BBF/H/D

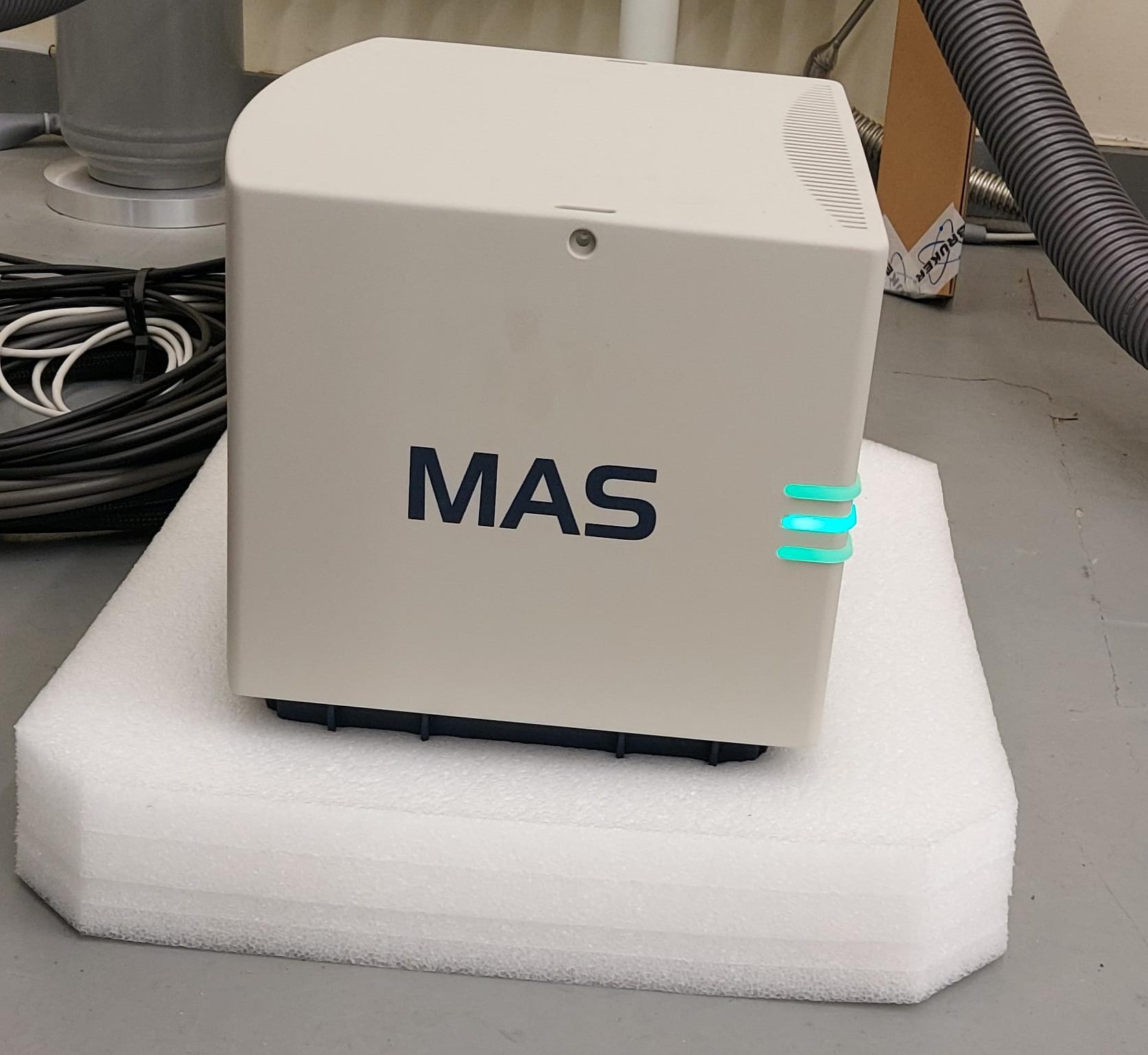

Solid iProbe: PI MAS 4.0 mm BB/F-H
Channels: 1H, 2H, BBX (31P - 15N)
Samples changer: SampleCaseTM with 60 positions for liquid and solid
home
home home

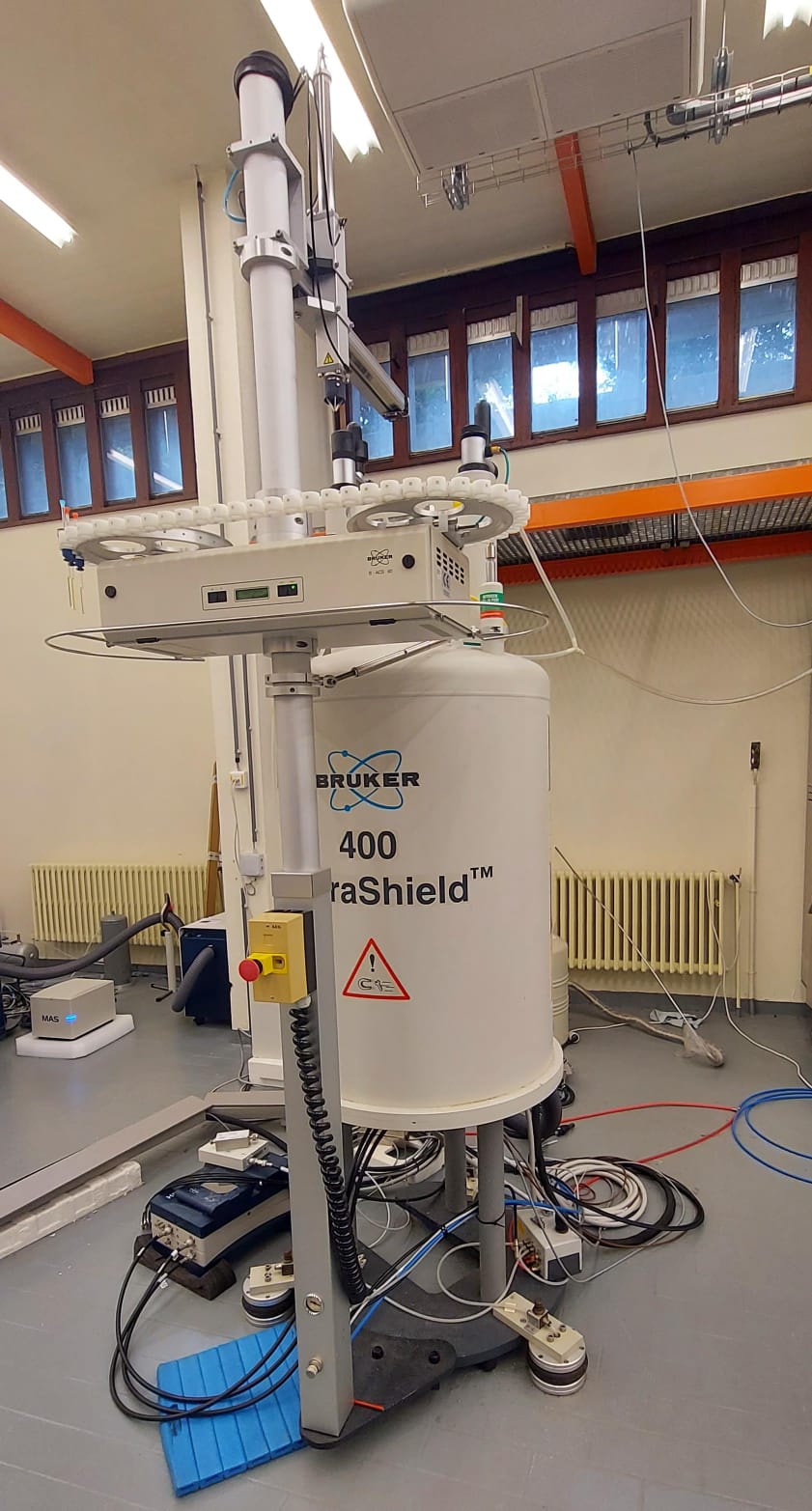

Advance III 400 MHz Bruker



The Bruker Advance III 400 MHz NMR spectrometer is equipped with two probes: liquid and solid. Both are BBO type (Broad-band observed) and allow the observation of nuclei whose resonance frequency is between 15N and 31P. The 19F can also be observed by the 1H channel.
The liquid probe is equipped with an automatic samples changer BACSTM for 60 liquid samples of 5 mm in diameter.

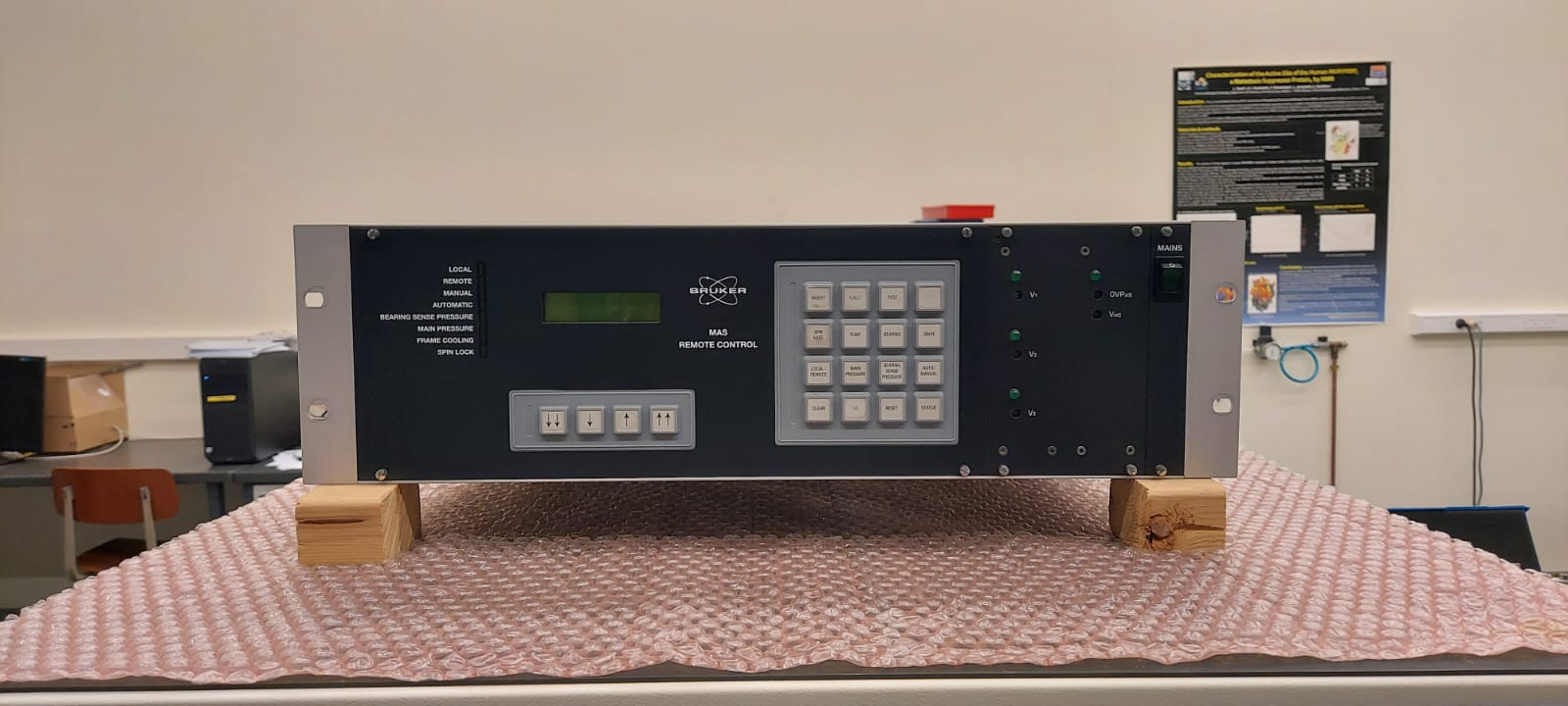

The solid probe is not equipped with an automatic samples changer and therefore requires manual usage.

Specifications


Magnet: UltrashieldTM 9.4 T
Console: Advance III HD
Liquid Probe: Smarth BBF/H/D
Solid Probe: SB MAS 4.0 mm BB/F-H
Channels: 1H, 2H, BBX (31P - 15N)
Samples changer: BACSTM with 60 positions for liquid
